Introduction
This article will explain how to use Matplotlib to plot non-solid curves with arrows, as shown in the figure below:
Matplotlib offers a rich set of built-in methods, yet it lacks a built-in function for drawing non-solid curves with arrows. While some online discussions exist on this topic, they haven't provided satisfactory solutions. Therefore, I conducted my own investigation into plotting such curves, aiming to create flawless, perfect non-solid curves with arrows.
Methods Provided by Matplotlib and Related Issues

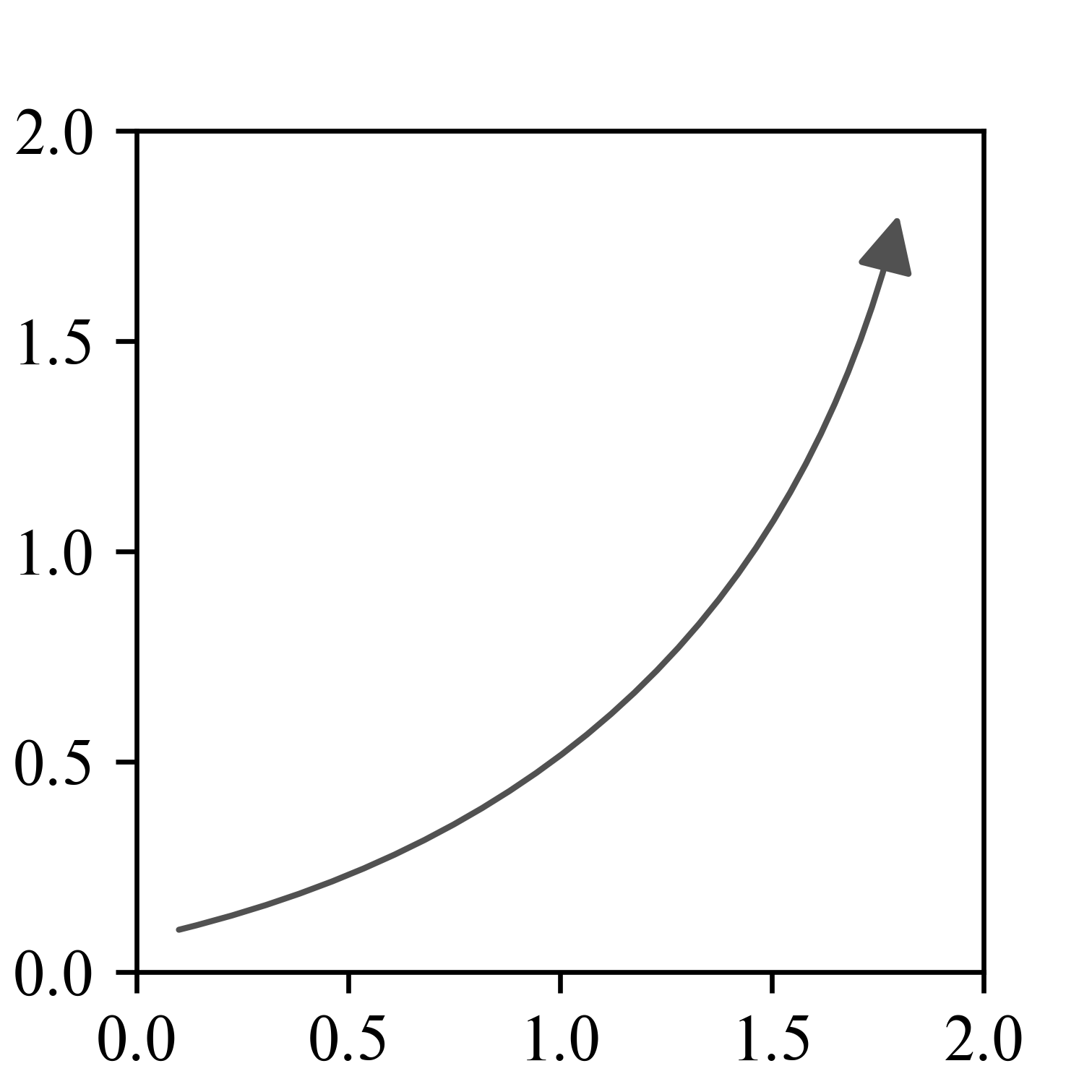

In Matplotlib, you can use FancyArrowPatch to create a curve with an arrowhead:
import matplotlib.patches as patches
import matplotlib.pyplot as plt
fig, ax = plt.subplots(1, 1, figsize=(4, 4))
ax.set_xlim(0, 2)
ax.set_ylim(0, 2)
ax.add_patch(patches.FancyArrowPatch(
posA=(0.1, 0.1), posB=(1.8, 1.8), arrowstyle='-|>, head_width=4, head_length=8',
connectionstyle='arc3,rad=0.3', color='#515151', shrinkA=0, shrinkB=0
))
plt.savefig('arrow_common.png', dpi=600)
However, if you want to render this curve as a non-solid line by simply changing its style, problems will arise:
# ...
ax.add_patch(patches.FancyArrowPatch(
# ...
linestyle='--'
)
# ...

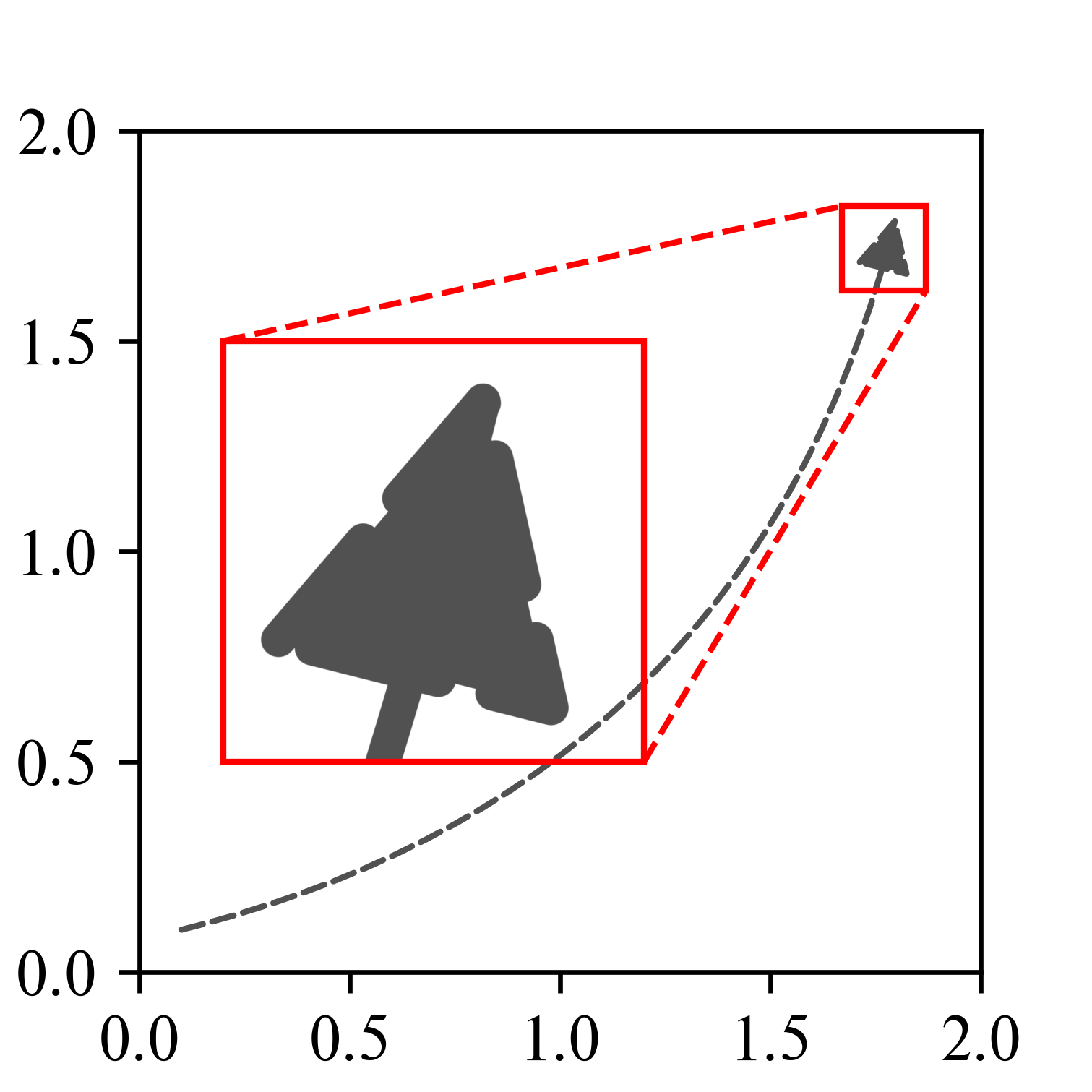

As can be seen, the arrow points are also drawn using dashed lines. Moreover, when using this method for plotting, the curvature of the curve is interface-dependent rather than coordinate-dependent. This means that when altering the x-axis or y-axis range of the chart, the curvature of the curve will still maintain visual consistency. In certain situations, this cannot be considered a rigorous plotting method.
Method
By emulating the drawing method for non-solid lines with arrows, it can be treated as two components: the non-solid curve and the solid arrowhead.
Non-Solid Curve
Matplotlib implements curve drawing using quadratic Bézier curves. Examining the source code reveals that given points A and B, and an angle rad in radians, the coordinates of control point C can be determined using the following formula:

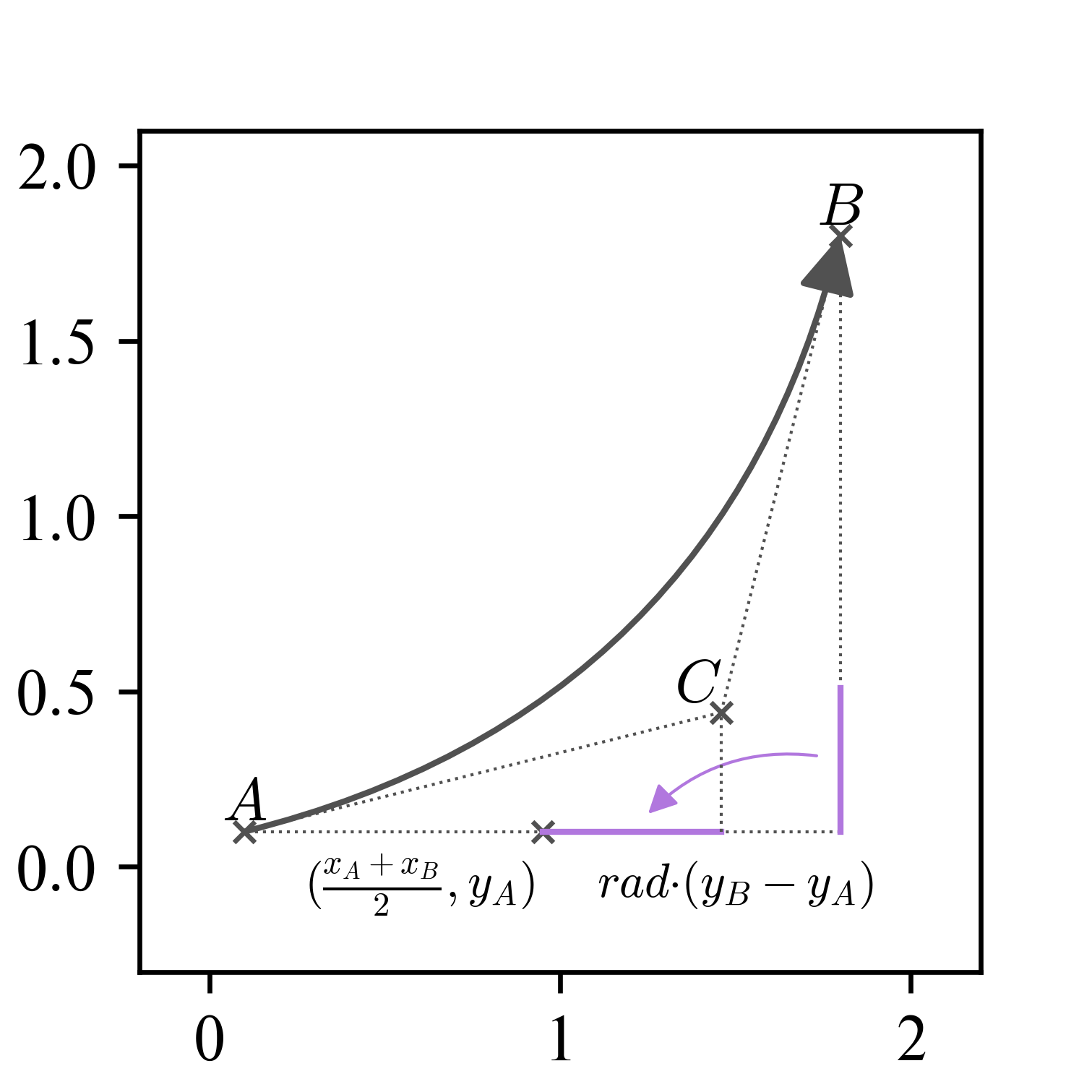

$$ x_C = \frac{x_A + x_B}{2} + rad · (y_B - y_A) $$ $$ y_C = \frac{y_A + y_B}{2} - rad · (x_B - x_A) $$

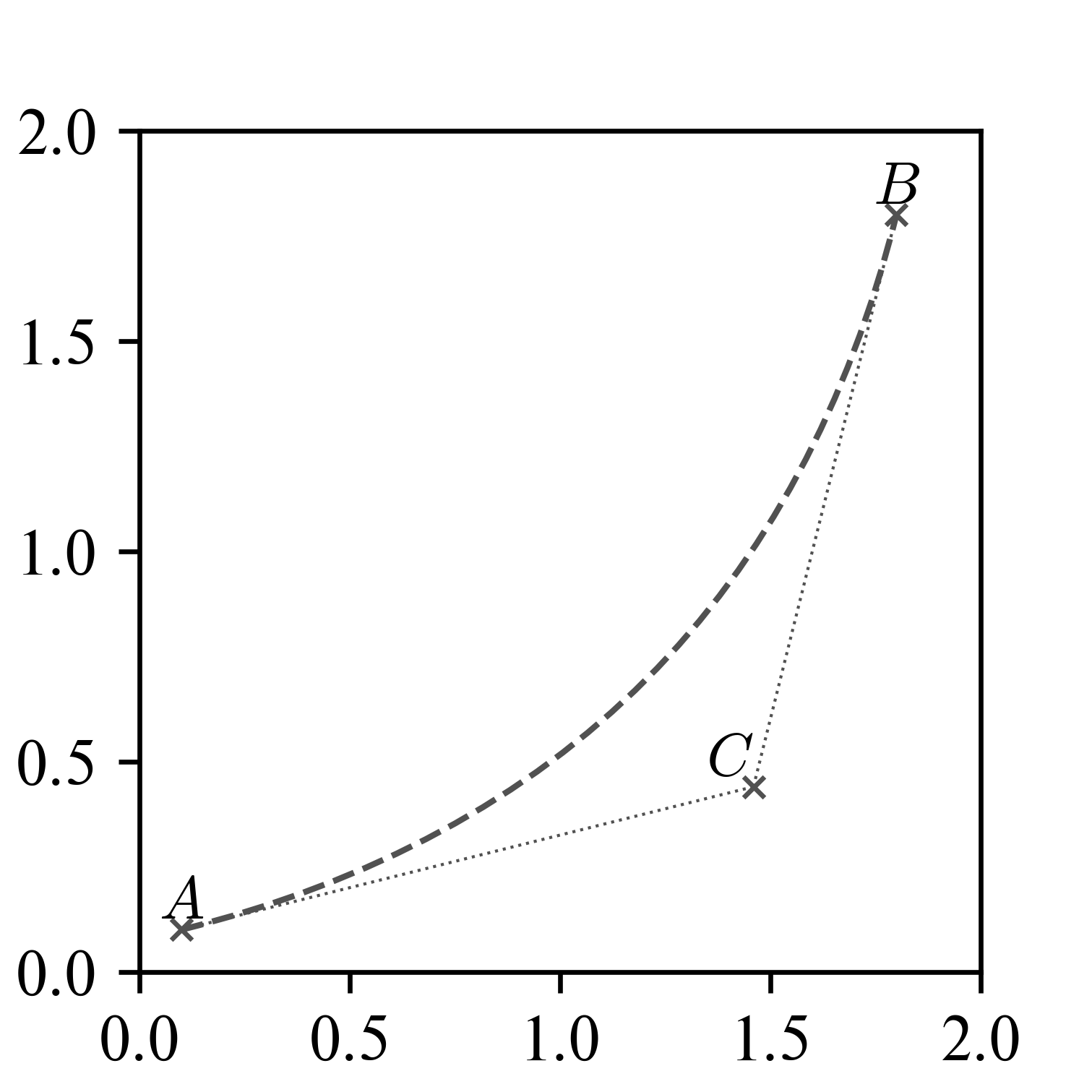

CA is tangent to the curve at point A, and CB is tangent to the curve at point B. This allows the non-solid curve to be drawn using the code below:
import matplotlib.patches as patches
import matplotlib.pyplot as plt
import numpy as np
def draw_arc3(from_, to_, rad, detail=False, color='#515151'):
x1, y1 = np.array(from_)
x2, y2 = np.array(to_)
dx, dy = x2 - x1, y2 - y1
x12, y12 = (x1 + x2) / 2., (y1 + y2) / 2.
cx, cy = x12 + rad * dy, y12 - rad * dx
control_ = (cx, cy)
vertices = [from_, control_, to_]
codes = [patches.Path.MOVETO, patches.Path.CURVE3, patches.Path.CURVE3]
path = patches.Path(vertices, codes)
patch = patches.PathPatch(path, facecolor='none', edgecolor=color, linestyle='--', linewidth=1)
ax.add_patch(patch)
if not detail:
return
ax.scatter(control_[0], control_[1], c=color, marker='x', s=12, linewidths=0.8)
ax.scatter(from_[0], from_[1], c=color, marker='x', s=12, linewidths=0.8)
ax.scatter(to_[0], to_[1], c=color, marker='x', s=12, linewidths=0.8)
ax.plot((control_[0], from_[0]), (control_[1], from_[1]), color=color, linewidth=.5, linestyle=':')
ax.plot((control_[0], to_[0]), (control_[1], to_[1]), color=color, linewidth=.5, linestyle=':')
ax.annotate(r'$A$', from_, ha='center', va='bottom')
ax.annotate(r'$B$', to_, ha='center', va='bottom')
ax.annotate(r'$C$', control_, ha='right', va='bottom')
fig, ax = plt.subplots(1, 1, figsize=(4, 4))
ax.set_xlim(0, 2)
ax.set_ylim(0, 2)
draw_arc3((0.1, 0.1), (1.8, 1.8), 0.3)
plt.savefig('arrow_arc3_dot.png', dpi=600)
Solid Line Arrow
With control point C and target endpoint B already defined, drawing a solid line arrow is straightforward. The following code easily creates an arrow that meets the requirements:
# ...
ax.annotate("", to_, xytext=control_, arrowprops=dict(
linewidth=0, arrowstyle="-|>, head_width=0.3, head_length=0.6",
shrinkA=0, shrinkB=0, facecolor=color, linestyle="solid", mutation_scale=10
))

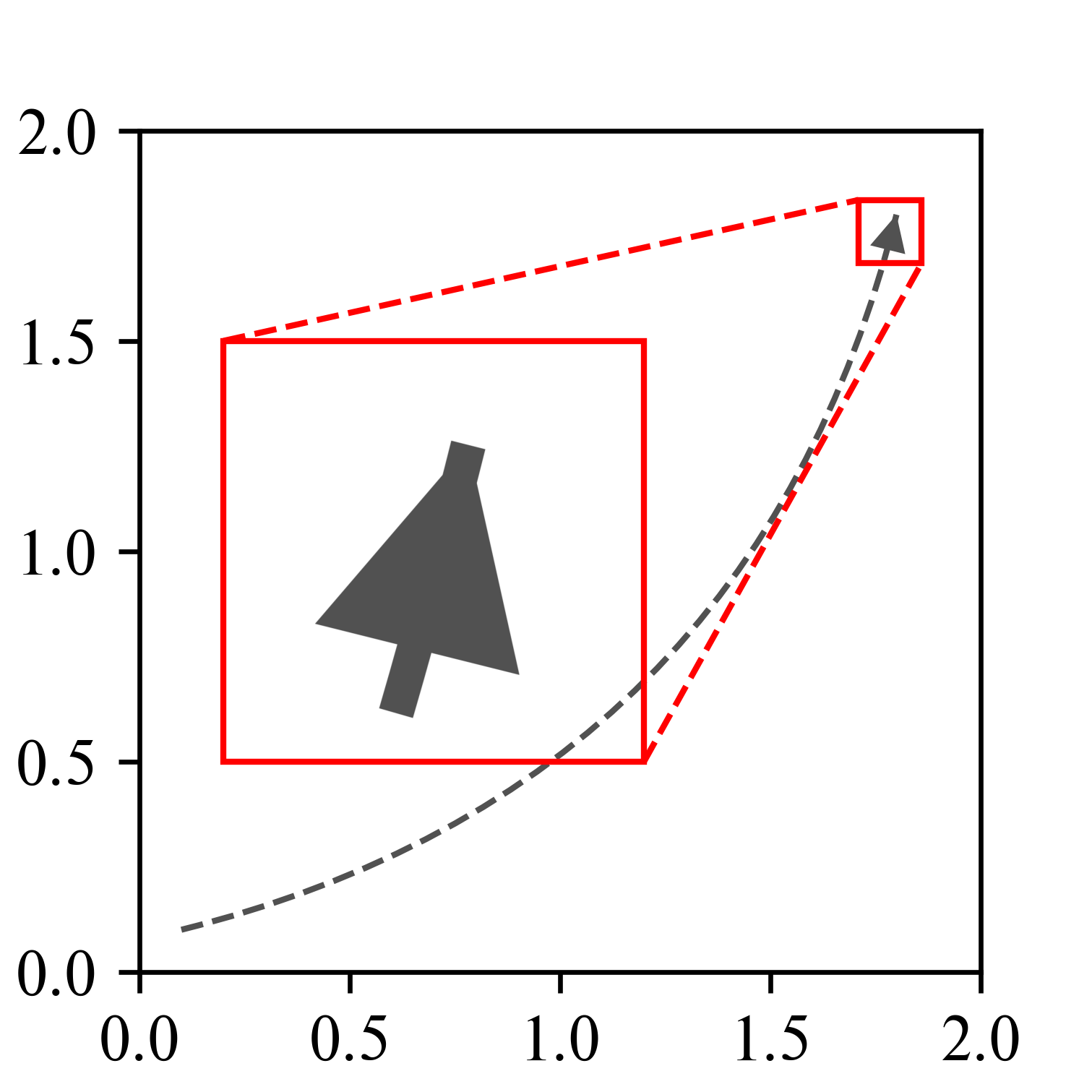

# ...However, upon closer inspection, issues remain apparent: as shown in the figure below, the width at the very tip of the arrow is narrower than the curve's width, resulting in an aesthetically displeasing visual effect.

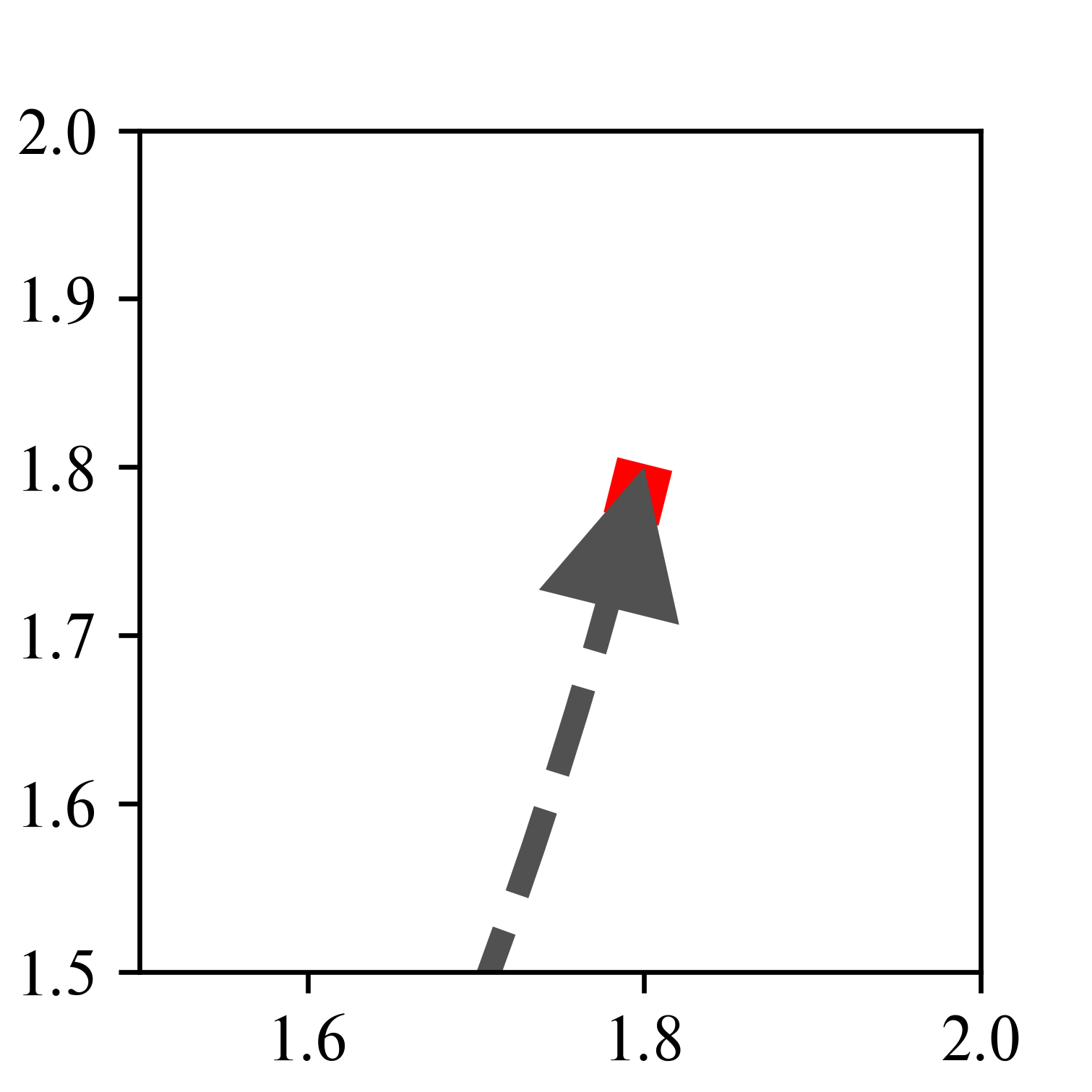

To address this, consider placing a mask between the curve and the arrow to conceal the excess curve portion:
The placement of masks can be achieved through a simple algorithm:
# ...
# Place the non-solid curve on layer -2
patch = patches.PathPatch(# ...
zorder=-2)
# ...
size = 0.08
direction = -1 if control_[0] < to_[0] else 1
mask = patches.FancyBboxPatch(
(to_[0], to_[1] - size / 2), direction * size, size, boxstyle="square, pad=0",
ec='red', fc='red', linewidth=1, zorder=-1
)
de = math.degrees(math.atan((control_[1] - to_[1]) / (control_[0] - to_[0])))
tf = transforms.Affine2D().rotate_deg_around(to_[0], to_[1], de) + ax.transData
cut.set_transform(tf)
ax.add_patch(cut)
# ...

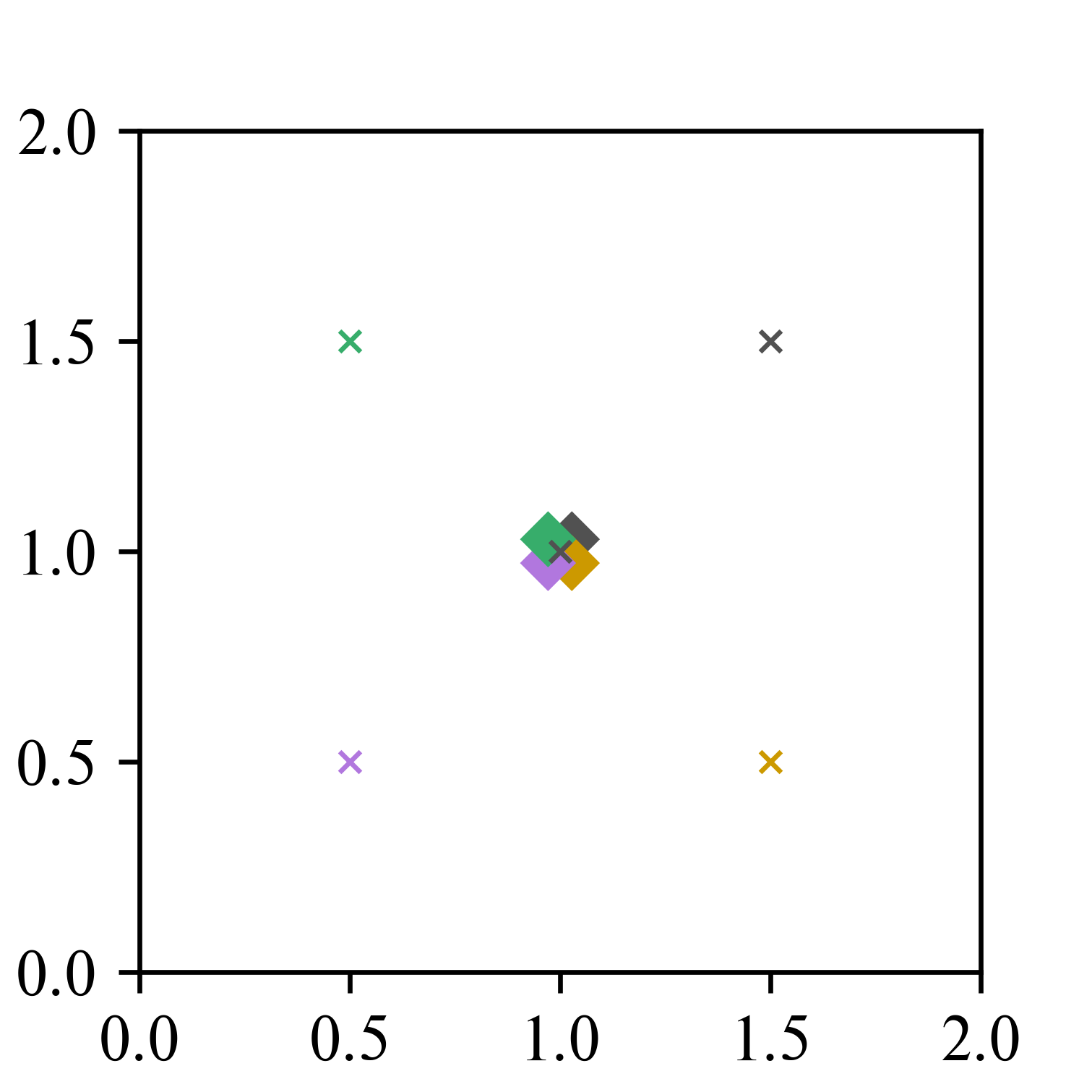

This allows for precise placement of the mask. The center point in the image is point B, the target endpoint, with surrounding areas indicating the directions of potential control points.
Non-Solid Curves with Arrows

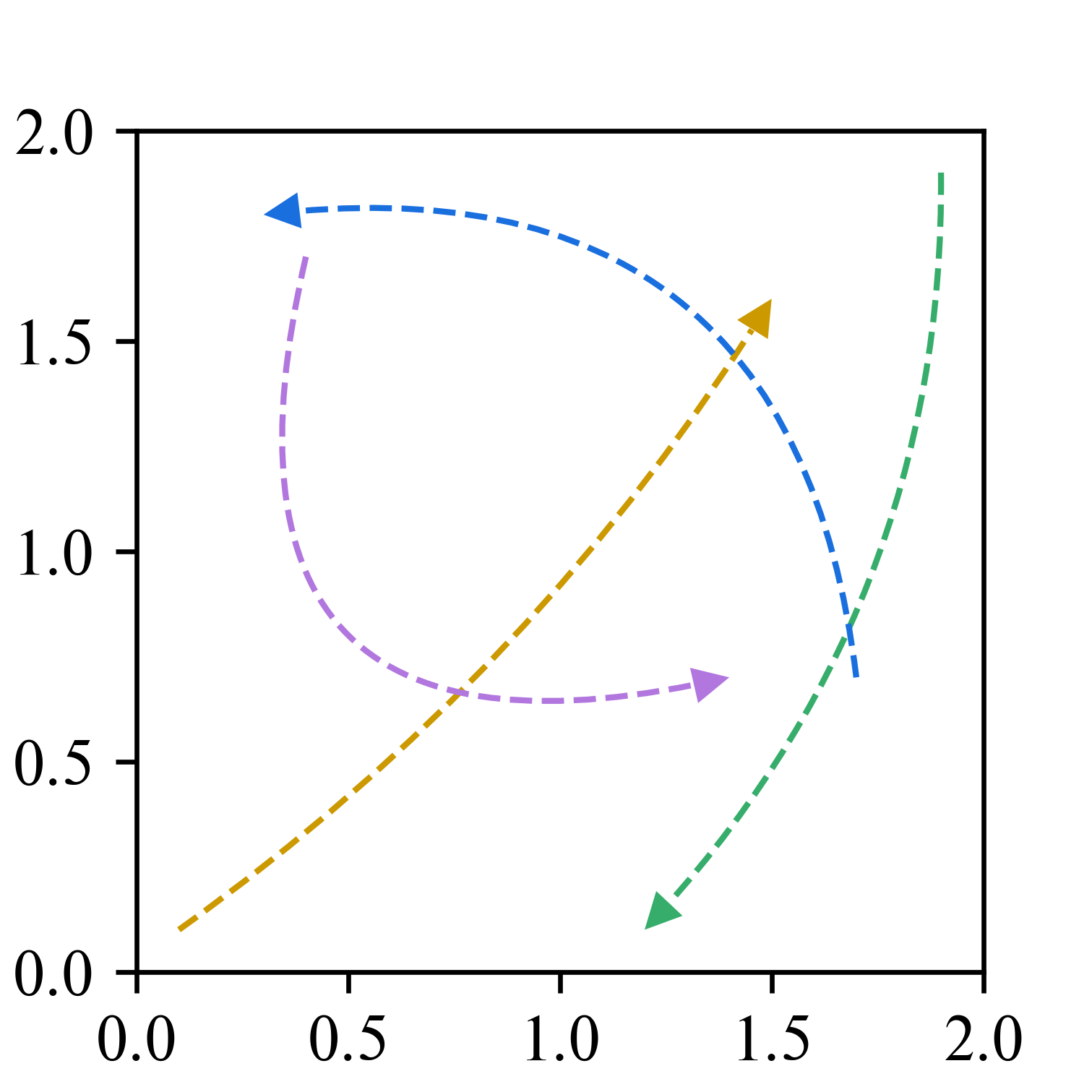

Finally, by integrating these two components and specifying certain parameters for control, one can complete the drawing of non-solid curves with arrows.
import math
import matplotlib.patches as patches
import matplotlib.pyplot as plt
import matplotlib.transforms as transforms
import numpy as np
def add_arrow(from_, to_, rad=0.3, control_=None, color='#515151',
line='--', head_length=0.6, size=0.04, detail=False):
"""
:param from_:Starting point
:param to_:Target endpoint
:param rad:Curve radius
:param control_:Control points;
if None, calculated based on the curvature of the curve.
:param color:Drawing colors
:param line:Curve Style
:param head_length:Arrow size
:param size:Mask Size
:param detail:Select whether to draw details,
and manually adjust the mask size by drawing details.
"""
if control_ is None:
x1, y1 = np.array(from_)
x2, y2 = np.array(to_)
dx, dy = x2 - x1, y2 - y1
x12, y12 = (x1 + x2) / 2., (y1 + y2) / 2.
cx, cy = x12 + rad * dy, y12 - rad * dx
control_ = (cx, cy)
vertices = [from_, control_, to_]
codes = [patches.Path.MOVETO, patches.Path.CURVE3, patches.Path.CURVE3]
path = patches.Path(vertices, codes)
patch = patches.PathPatch(path, facecolor='none', edgecolor=color,
linestyle=line, linewidth=1, zorder=-2)
ax.add_patch(patch)
direction = -1 if control_[0] < to_[0] else 1
mask_c = 'red' if detail else 'white'
mask = patches.FancyBboxPatch(
(to_[0], to_[1] - size / 2), direction * size, size, boxstyle="square, pad=0",
ec=mask_c, fc=mask_c, zorder=-1, linewidth=1)
de = math.degrees(math.atan((control_[1] - to_[1]) / (control_[0] - to_[0])))
tf = transforms.Affine2D().rotate_deg_around(to_[0], to_[1], de) + ax.transData
mask.set_transform(tf)
ax.add_patch(mask)
ax.annotate("", to_, xytext=control_, arrowprops=dict(
linewidth=0,
arrowstyle="-|>, head_width=%f, head_length=%f" % (head_length / 2, head_length),
shrinkA=0, shrinkB=0, facecolor=color, linestyle="solid", mutation_scale=10
))
if not detail:
return
ax.scatter(control_[0], control_[1], c=color, marker='x', s=12, linewidths=0.8)
ax.scatter(from_[0], from_[1], c=color, marker='x', s=12, linewidths=0.8)
ax.scatter(to_[0], to_[1], c=color, marker='x', s=12, linewidths=0.8)
ax.plot((control_[0], from_[0]), (control_[1], from_[1]), color=color, linewidth=.5, linestyle=':')
ax.plot((control_[0], to_[0]), (control_[1], to_[1]), color=color, linewidth=.5, linestyle=':')
def draw_eg():
debug = False
add_arrow((0.1, 0.1), (1.5, 1.6), rad=0.1, color=colors[1], detail=debug)
add_arrow((0.4, 1.7), (1.4, 0.7), rad=0.8, color=colors[2], detail=debug)
add_arrow((1.9, 1.9), (1.2, 0.1), rad=-0.2, color=colors[3], detail=debug)
add_arrow((1.7, 0.7), (0.3, 1.8), rad=0.5, color=colors[4], detail=debug)
plt.savefig('arrow_example%s.png' % ('_detail' if debug else ''), dpi=600)
fig, ax = plt.subplots(1, 1, figsize=(4, 4))
ax.set_xlim(0, 2)
ax.set_ylim(0, 2)
colors = ['#515151', '#CC9900', '#B177DE', '#37AD6B', '#1A6FDF']
draw_eg()
